IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval

Product Categories
COMI LIGHTING LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval

Brand Name : COMI LIGHTING

Model Number : B7TA-400W

Certification : CE,ROHS, SAA, FCC, ISO9001:2008

Place of Origin : Guangdong China

MOQ : 5pcs

Payment Terms : T/T, L/C, Western Union

Delivery Time : 3-20days depends on order quantity

Packaging Details : 1piece/CARTON

Product name : IP66 Exterior LED Tunnel Floodlights

Application : Garden,LANDSCAPE,Square,Outdoor Lighting

Material : Aluminum

Input voltage(v) : AC85-265V

Lamp luminous flux(lm) : 56000

Led light source : 672pcs CREE/Osram/ Lumileds, 3030 LED

Cri (ra>) : Ra>80

Lamp luminous efficiency(lm/w) : 140

Color temperature(cct) : 2200-6500K

Driver : Mean Well Driver

PF : >0.95

Body Color : Black+blue

Working lifetime(hour) : 50000hours

Lamp body material : Aluminum

Working temperature(℃) : -20 - 50

Ip rating : IP66

Warranty(year) : 5

Contact Now

COMI Lighting's B7TA-Series is a modular design LED tunnel light. B7TA operates from AC85-277V and offers models with different rated power ranging from 50W to 600W. It adopts high quality and high PF Mean Well or Sosen brand driver enables the lighting fixture with high efficiency up to 140lm/W. This lighting fixture is easy installed by angle adjustable bracket. The design of 6063 aluminium lamp housing and IP66 ingress protection level allows this series to fit outdoor applications and widely used for lighting for tunnel court, sports field, stadium, football field, golf course, tower crane, ports, square, building pillars, bridge, billboard, courtyard, road, outdoor, garbed trees and etc.

Features and Benefits:
▪ Modular design for easy maintenance.
▪ Input Voltage AC95-305V,50/60Hz.
▪ Power Consumption:400W
▪ 672pcs / Lumileds/ Osram/ Cree/ Epistar 3030 chip as its light source.
▪ High light efficiency up to 140 lm/W.
▪ CRI: Ra>80.
▪ High quality Mean Well or Sosen brand LED Driver with high PF≥0.95.
▪ Anti-UV PC optics lens, transmittance rate> 94%.
▪ Beam angle options:10°/25°/45°/60°/90°/20*50°/30*70°/80*140°.
▪ Made of premium aluminium with good heat dissipation, compression and wear resistance.
▪ IP66 Waterproof rate for outdoor use.
▪ ETL, FCC,TUV, CE, ROHS,SAA,CB certificates.
▪ 5 Years warranty.

IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval

Material Specifications:

Housing 6063 Aluminium
Gasket Double silicon-rubber rings
Lens Premium anti-UV PC optics lens ,transmittance> 94%,
Beam angle options: 10°/25°/45°/60°/90°/20*50°/30*70°/80*140°.
Cable Gland Copper and nickel coated
LED , Lumileds, Osram, Cree, Epistar 3030 High Power LED, CRI80+
PCB Excellent heat conductivity aluminium, coefficient of Heat Conductivity≥2.0w/mk
LED Driver Mean Well or Sosen Brand Constant Current LED Driver, PF≥0.95
Power Cable 0.5Meter 3-core : Brown(L), Yellow(G), Blue(N)
Operating Temperature -20℃~+50℃
Installation Aluminium Bracket (Angle Adjustable)

Technical Specifications of400W LED Tunnel Light / LED Flood Lighting:

Item Number

Power

(W)
Input
Voltage
(Vac)
Light Source
Beam Angle
CCT(K)
CRI
(Ra)
Luminous
Flux (lm)±5%
PF
IP Rate
B7TA-400W
400W
95-305Vac,
50/60Hz
672 pcs
3030 LED
15°, 25°, 45°,
60°, 90°, 20*50°,
30*70°, 80*140°
2700-6500K
Ra≥80
52000-56000lm
≥0.95
IP66

Note: Specifications are subjected to change without notice.

Dimension and Packaging Information for LED Tunnel Lights/ Flood Lights:

Item Number
Product Size
Package Size
N.W.
G.W.
Packaging
B7TA-50W
310*87*170mm
344*190*135mm
2.8KG
3.2KG
1piece/Carton
B7TA-100W
310*87*228mm
344*258*135mm
4.1KG
4.5KG
1piece/Carton
B7TA-150W
311*87*309mm
344*334*135mm
5.2KG
5.8KG
1piece/Carton
B7TA-200W
311*97*383mm
420*350*135mm
5.7KG
7.4KG
1piece/Carton
B7TA-250W
311*97*459mm
495*350*135mm
7.9KG
8.5KG
1piece/Carton
B7TA-300W
311*97*538mm
590*350*135mm
9.4KG
10.1KG
1piece/Carton
B7TA-400W
571*107*388mm
614*435*135mm
12.2KG
13KG
1piece/Carton
B7TA-500W
571*107*461mm
614*520*135mm
14.3KG
15.2KG
1piece/Carton
B7TA-600W
571*107*529mm
614*614*135mm
16.5KG
17.5KG
1piece/Carton

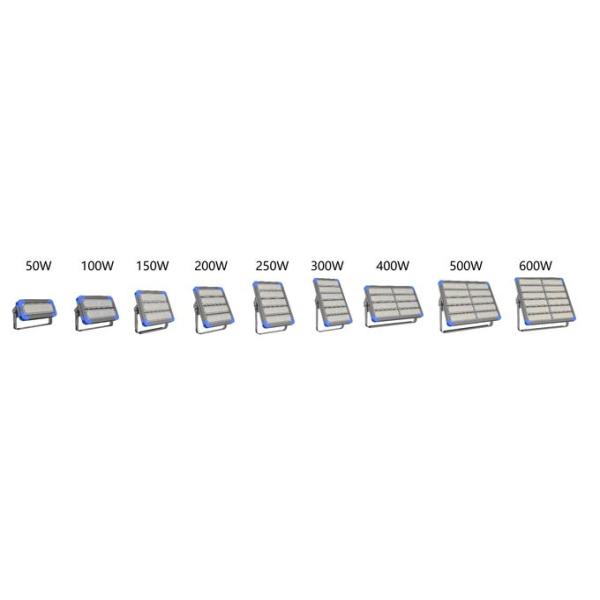

Product family Series of B7TA LED Flood Lights/ LED Tunnel Lights:

IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval

Light Distribution Curve for Different Beam Angle of B7TA LED Floodlights/ LED Tunnel Lighting:

IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval

Exploded View of 50W/100W/ 250W/ 300W/ 400W/ 500W/ 600W LED Tunnel Lights/ LED Flood Lights:

IP66 400W LED Flood Lights High Lumen LUMILEDs With FCC / CE/ ROHS Approval
